HPMONT Control Cabinet

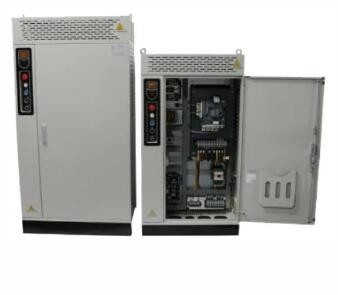

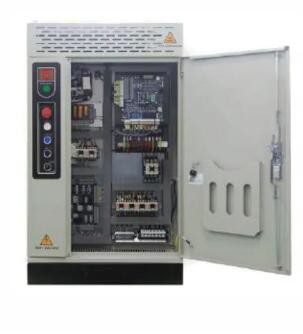

HPMONT elevator control cabinet MTCC

1. Comply with the new elevator national standard requirements of Unintended car movement protection and Door lock short circuit protection

2. Floor display and leveling indicator for easy-on site maintenance

2. Y2 2.2~ 15KW With machine room
Y3 18.5~37kW With machine room
Y4 45~ 75kW With machine room
W1 2.2~ 15kW Without machine room
W2 2.2~ 15kW Without machine room

3. Voltage Class
2: 200-240VAC
4: 380-460VAC

4. Phase
S: Single phase input
D: Single/Three input compatible
T: Three phase input

5. Integrated Controller Power Class:2S/2D/2T

6. Encoder Card
PG1: MT70-FG1-ABZ
PG2: MT70-PG2-SINCO5-A
PG3: MT70 PG3-UWW
PG4: MT70-FG4-SC-A

7. Package Board Type in Panel
B1: MT70-KCB-81
C:   MT70-KCB-C

8. Lon Voltage Device Configuration
E: Standard type
C: Ecomenical
