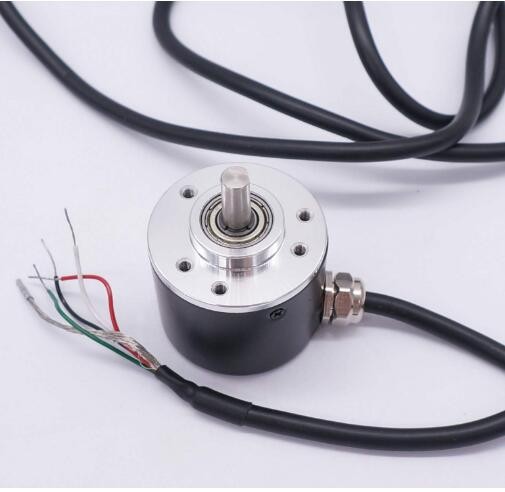

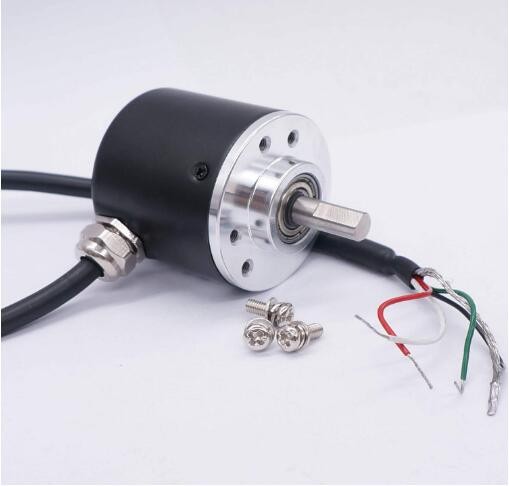

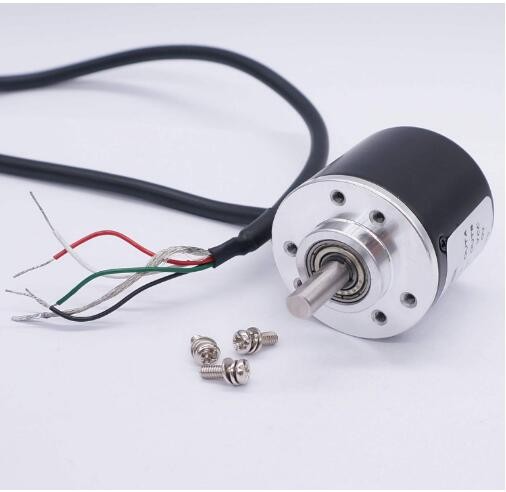

2 phase Incremental Rotary Encoder 100P/R DC 5-24v Wide Voltage Power Supply 6mm Shaft 100P/R
Product Name:
incremental rotary encoders 100P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .
Encoder size ：
Encoder size: 38 x 35.5mm/1.49" x 1.39" ；
Shaft: 6 x 15mm/0.23" x 0.59"；
Axis stopper platform: High 5mm, 20mm；
Power source: DC 5-24V；
Maximum mechanical speed: 6300 R / min.
Connection:
white = A phase, Green = B phase, red = power +, black = V0 ；
Note: AB two -phase outputs must not be connected directly to VCC,
otherwise, they will burn the output transistor.
